Where is the power cord on the medicine cabinet, and how long is it?
The location and length of the power cord vary by model. Please refer to the image on the left for specific details for your cabinet.
Free Shipping
Up to 5-Year Warranty
Secure Checkout
60-Day Return Policy
Specs
Features
FAQ
Reviews
Product Specifications
Download Installation Guide
Download Product Specification

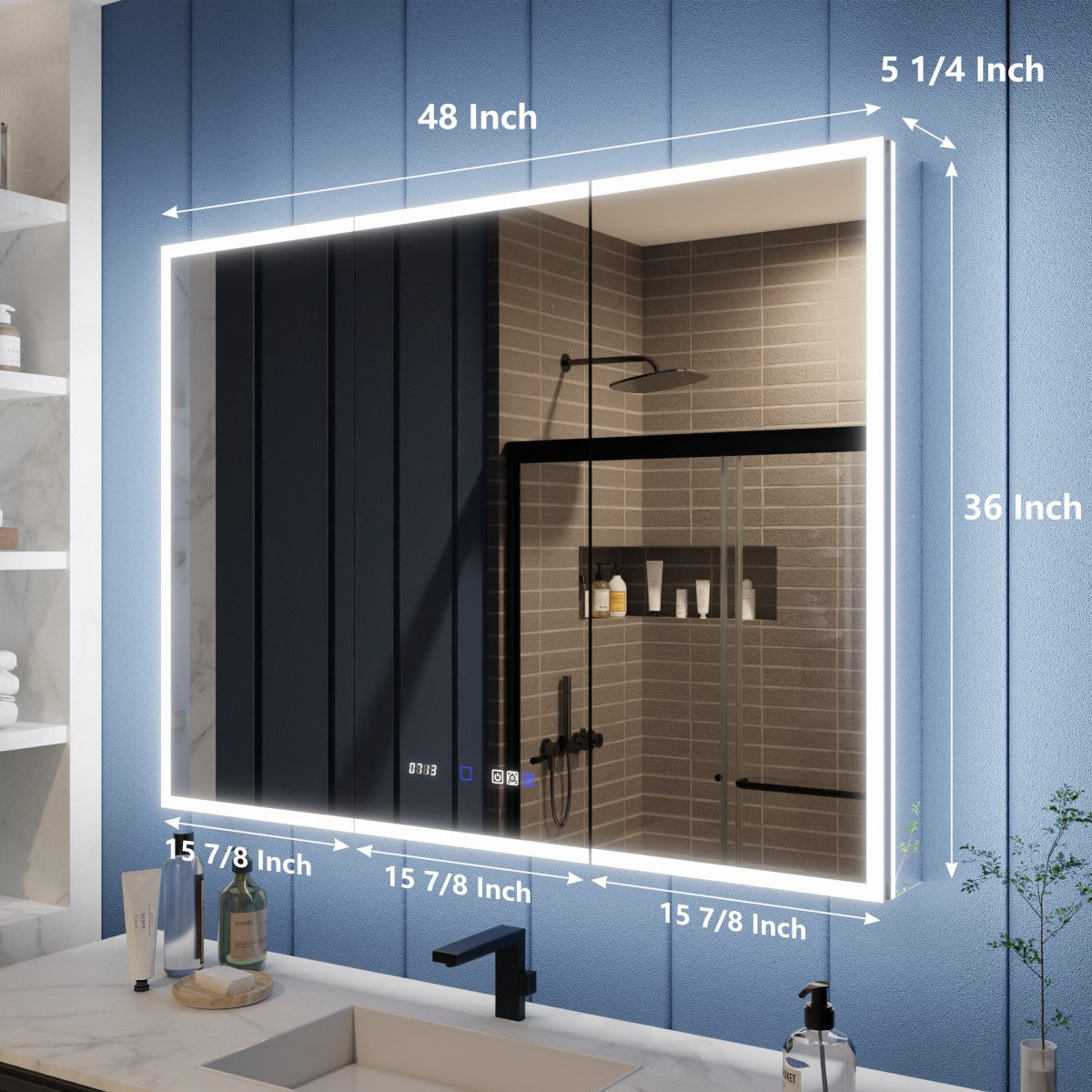

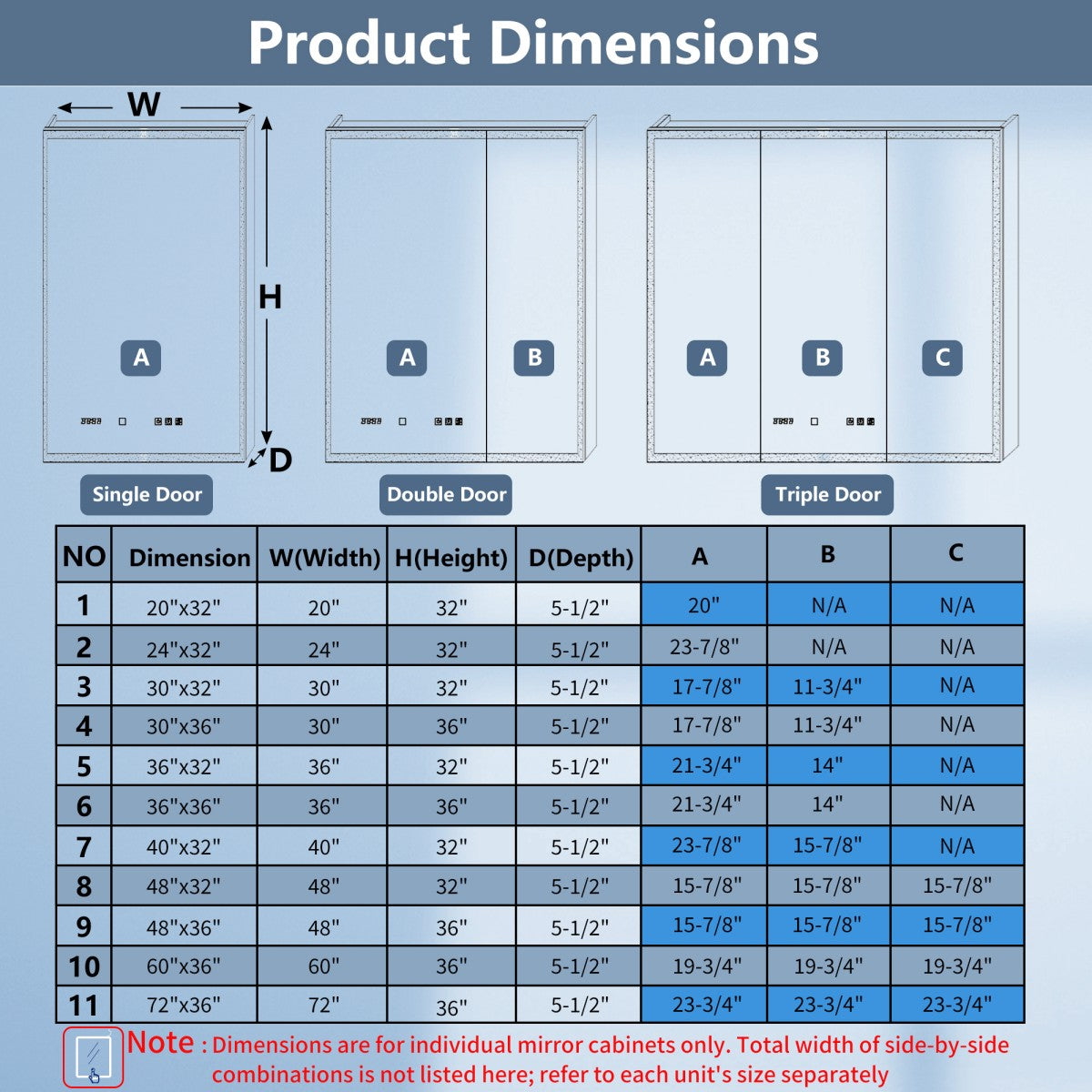

Physical Details
Width
48" W
Height
36" H
Thickness/In
5.5

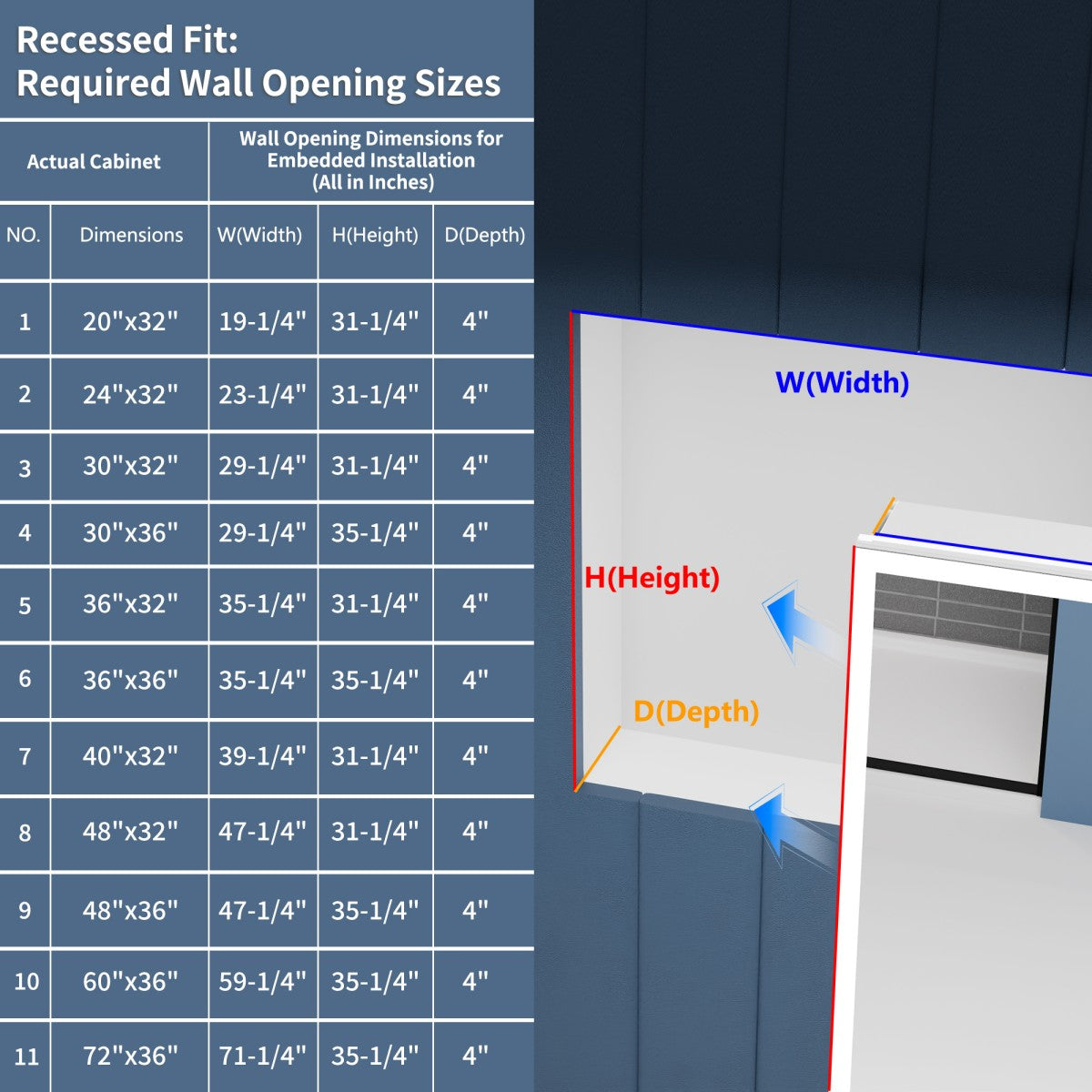

Recessed Width
47‑1/4"
Recessed Height
35‑1/4"
Recessed Depth
4"
Product Weight
126Lb
Recommended vanity widths
For best visuals, pick a mirror cabinet 70–80% your vanity width; larger/smaller options work per your needs.
65–70 in
Certification
GFCI included;ETL Certified Whole Unit;UL Certified Electrical Parts
Doors Quantity
3.0

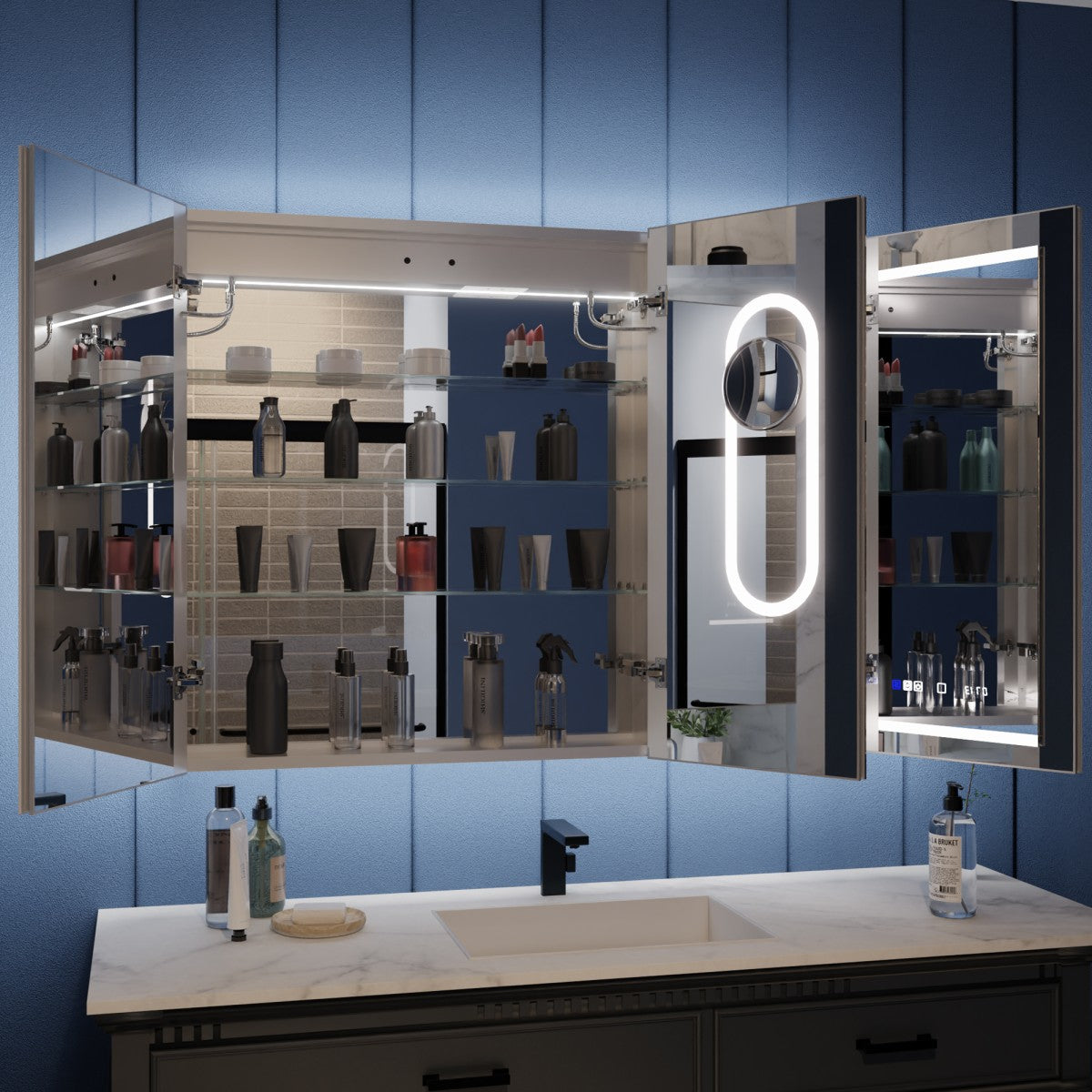

Number of Shelves
3 tiers with 2 shelf per tier
Recommended Application
Suitable for both humid and low‑humidity grooming spaces: living rooms, bedrooms, walk‑in closets, bathrooms and powder rooms.
Door Swing (Hinge Location,left to right, facing the cabinet)
if this product has child variants (e.g. combined mirror cabinet layout), please refer to the product images if the layout differs from the main variant. All specifications remain identical for the same size.
Left / Right / Right
Defogger Coverage(left to right, facing the cabinet)
if this product has child variants (e.g. combined mirror cabinet layout), please refer to the product images if the layout differs from the main variant. All specifications remain identical for the same size.
9.8 x 25.6 in / 11.8 x 25.6 in / 9.8 x 25.6 in
Electrical Details
Power/W
168
Lumens
(incl. backlight)
5985
CRI
≥90
Input Voltage
120V,60Hz
Lighting options
Independent front & back light control
Outlet
Max 1800W(15A) | 2×3‑prong Outlets | 2 USB (5V, 3.6A Total)
Brightness
Stepless dimming, 10%-100%
Color Temperature

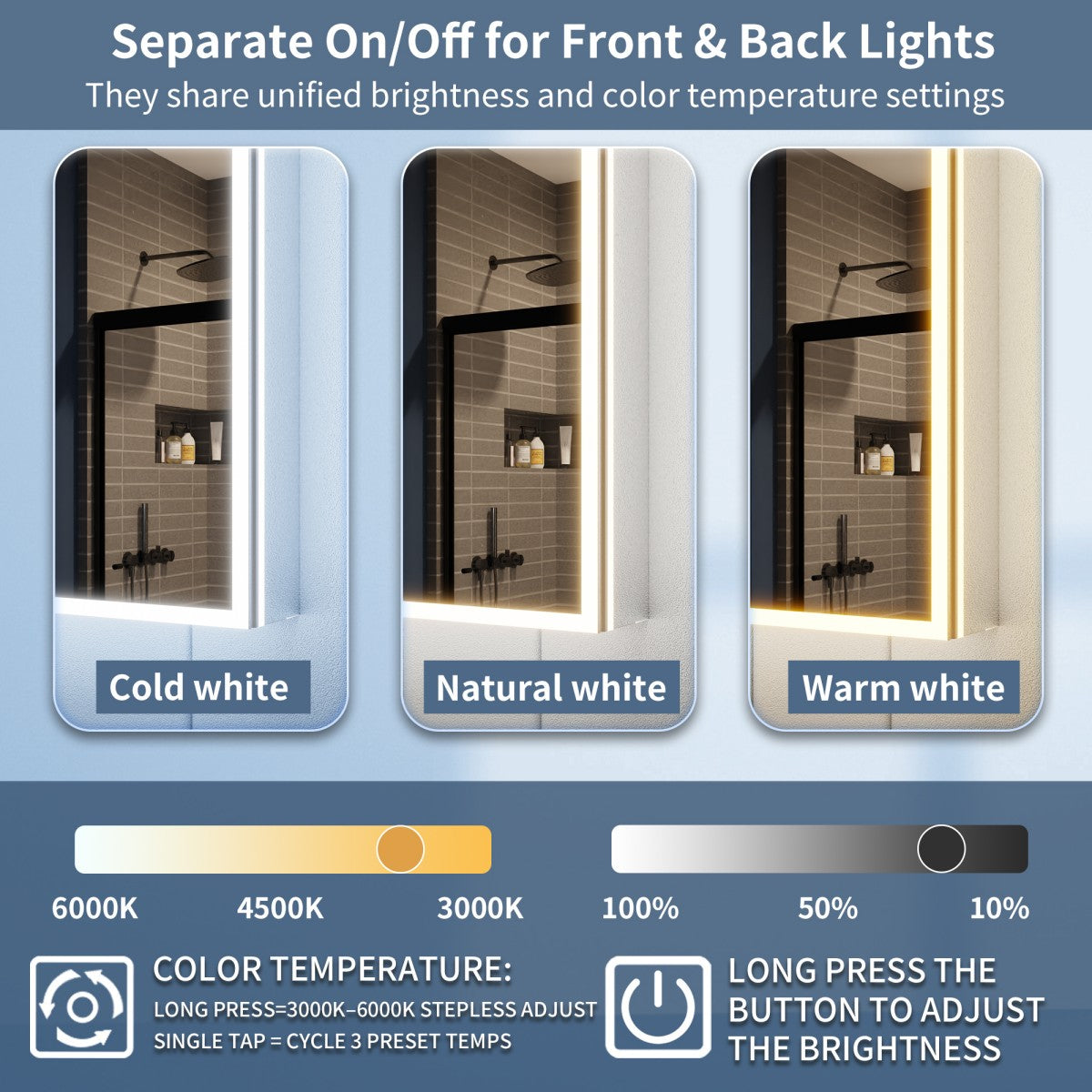

3000K‑6000K stepless adjustment, with click‑to‑switch preset levels: 3000K/4200K/6000K

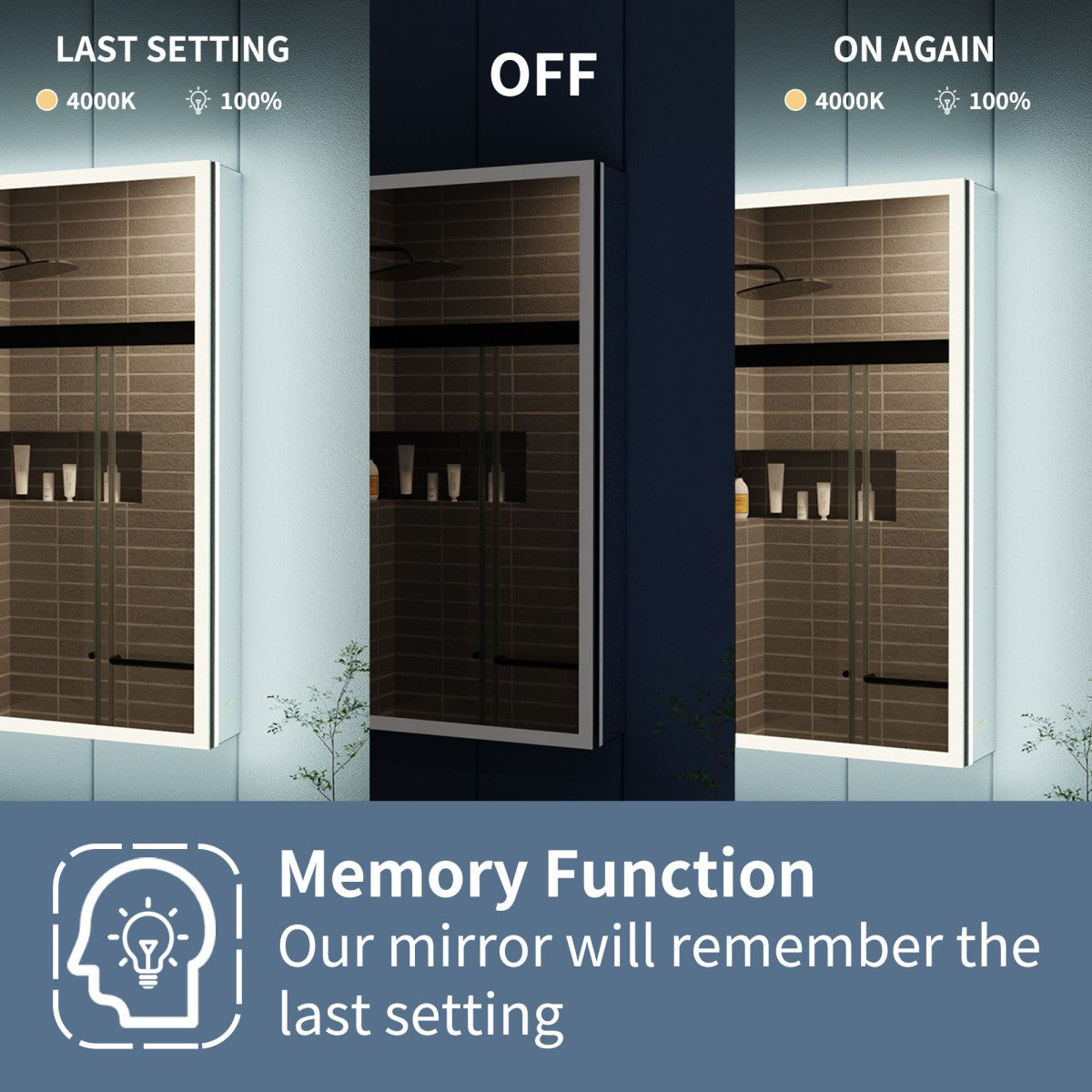

Memory Function
Yes. Leave lights on for ~3s to save last brightness & CCT settings; defog resets every use (no memory).
Installation & Accessories
Hinge
170° soft-closing hinge

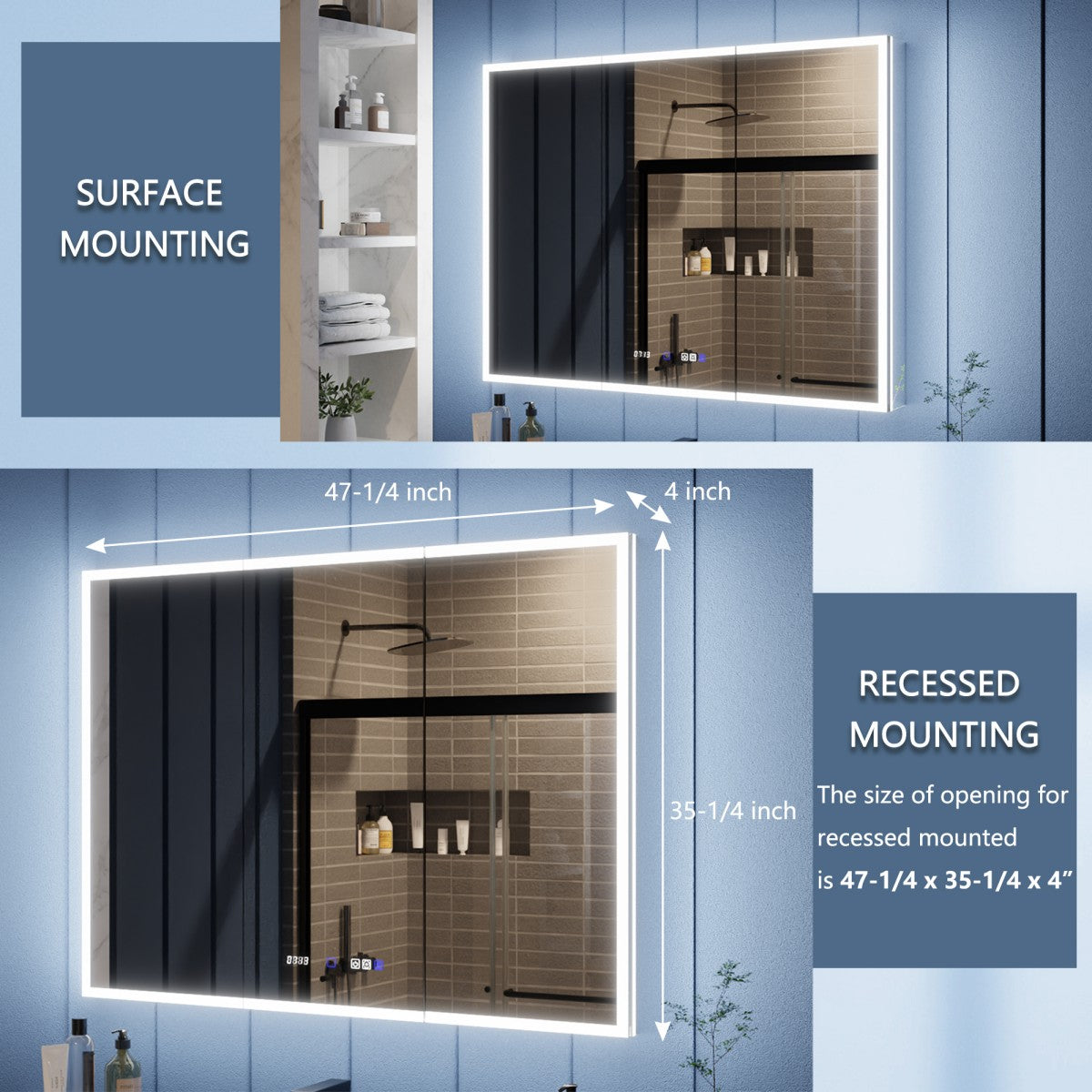

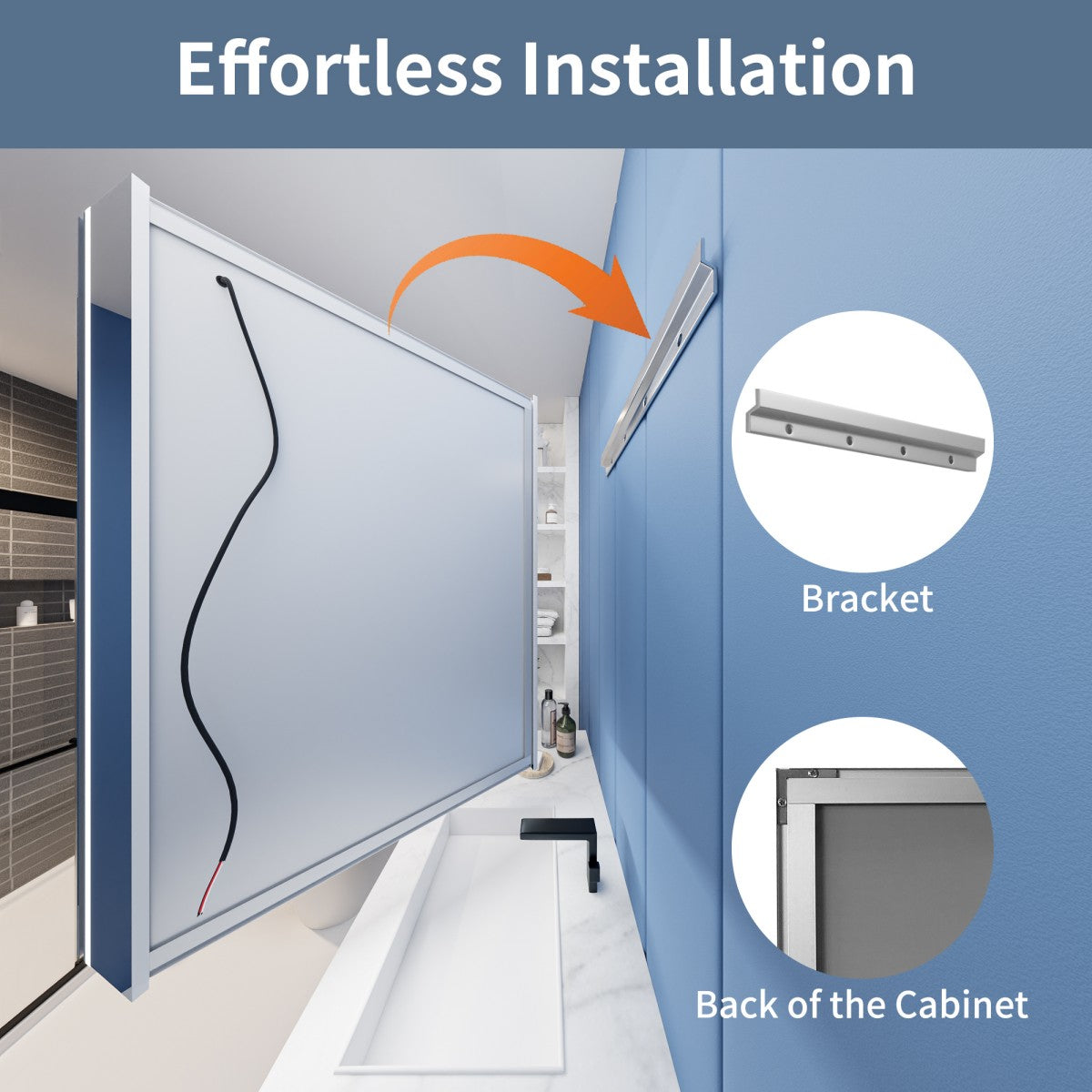

Installation Method
Surface & recessed mounting options available
Warranty
Standard LED strips are covered for up to 3-year (subscribed) / 1-year (non-subscribed); Electrical parts (outlet/USB, touch buttons, defogger), cabinet structure and mirror surface are covered for up to 5-year (subscribed) / 3-year (non-subscribed).
Back power cord length
Refer to power cord graphic specs or download Product Spec; match cord length to each unit size for combined cabinets.
Power Source
Hardwired only, no plug included. Works with regular wall switches to cut power; dimmer switches are incompatible.
Shipping
Logistics Service
We track all shipments real-time. Small items ship via FedEx/UPS with 3-Day shipping available at checkout. Oversized/heavy goods use LTL without 3-Day service. LTL transit involves multiple hubs; pickup takes an extra 1–3 days, and transit times vary by carrier scheduling.
Description
Transform Your Bathroom with Our Innovative Lighting Mirror Cabinet
Elevate your bathroom experience with our premium lighting mirror cabinet, expertly crafted to meet all your requirements. This cabinet seamlessly merges functionality, elegance, and advanced technology, making it a vital enhancement for your contemporary home.
⭐ Our Product Philosophy: Built for DIY, Not Expensive Labor
- In the U.S., labor costs often exceed the price of the Medicine Cabinet itself.
That’s why every ExBrite Medicine Cabinet— is designed around one principle:A homeowner should be able to install it themselves.Our product embodies this philosophy so you never have to pay for complex professional installation.
⭐ Support — Real Engineers Behind Every Medicine Cabinet
- Unlike most brands, our support team includes engineers who have personally installed every ExBrite Medicine Cabinet model.
-
If you ever need help—leveling the cabinet, securing the wall mounting, adjusting the doors, or managing electrical connections—our online support team and engineers are ready to guide you step by step.
-
This level of installation support is rare in the medicine cabinet industry and is one of ExBrite’s key advantages in the e-commerce market.

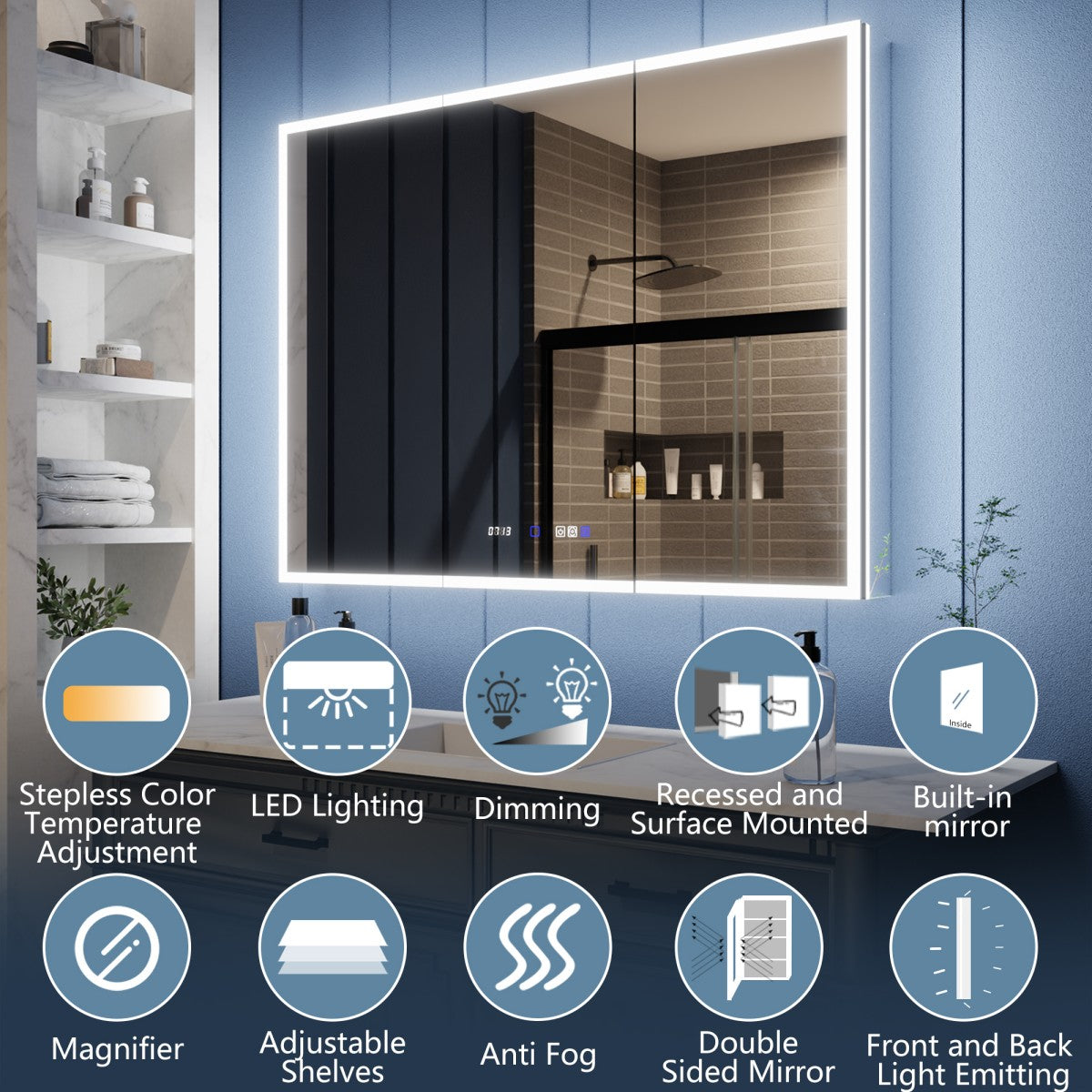

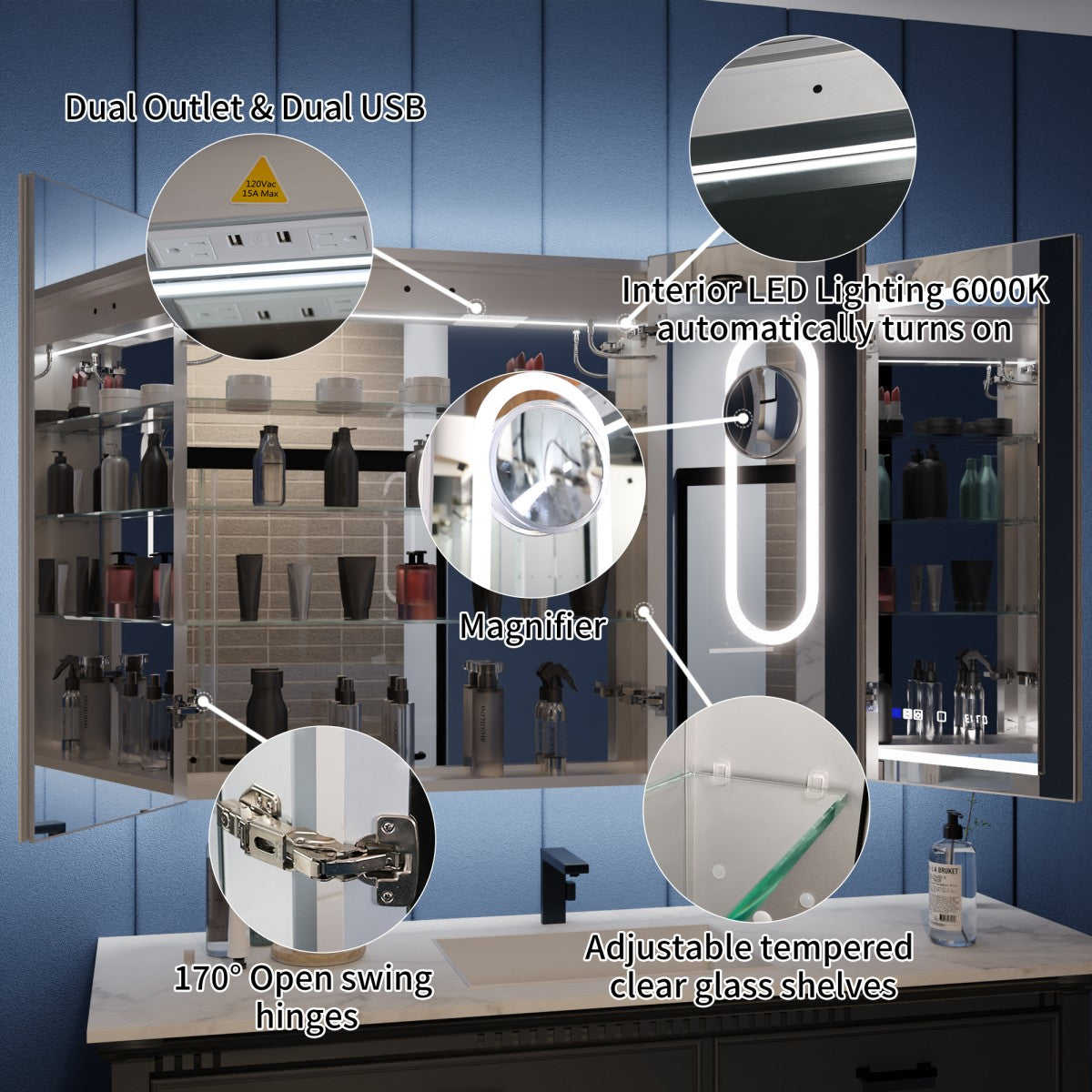

Key Features:

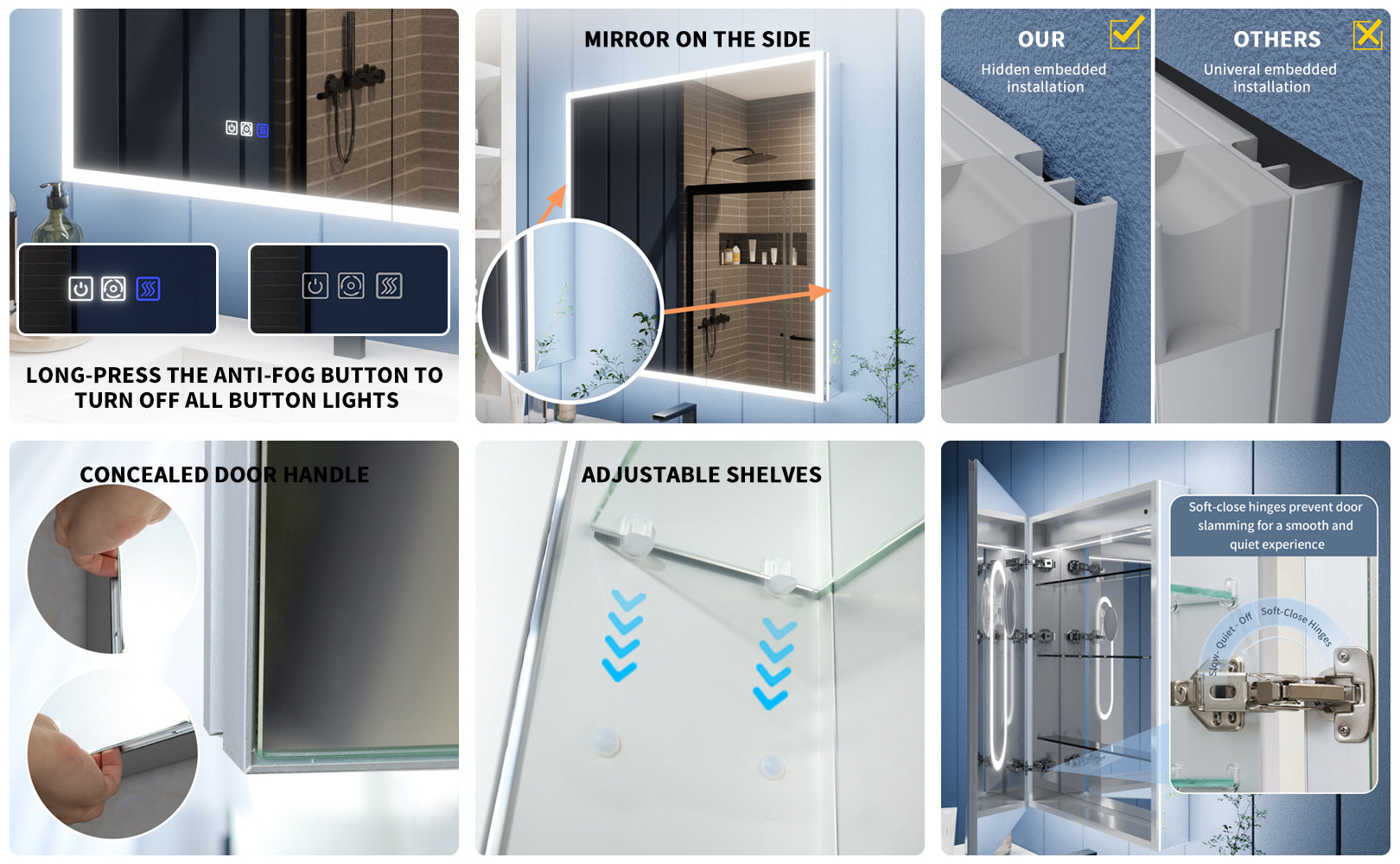

- Advanced Lighting Control: Discover unparalleled lighting personalization through our cutting-edge features. The cabinet is designed for seamless dimming, continuous adjustments in color temperature, and effective anti-fog capabilities. With a built-in power-off memory function, it recalls your previous settings for future use. Additionally, you can deactivate the button backlight for a more subtle appearance, while the door sensor light illuminates upon opening, enhancing both convenience and energy efficiency.(The anti-fog system automatically shuts off after 60 minutes for safety)

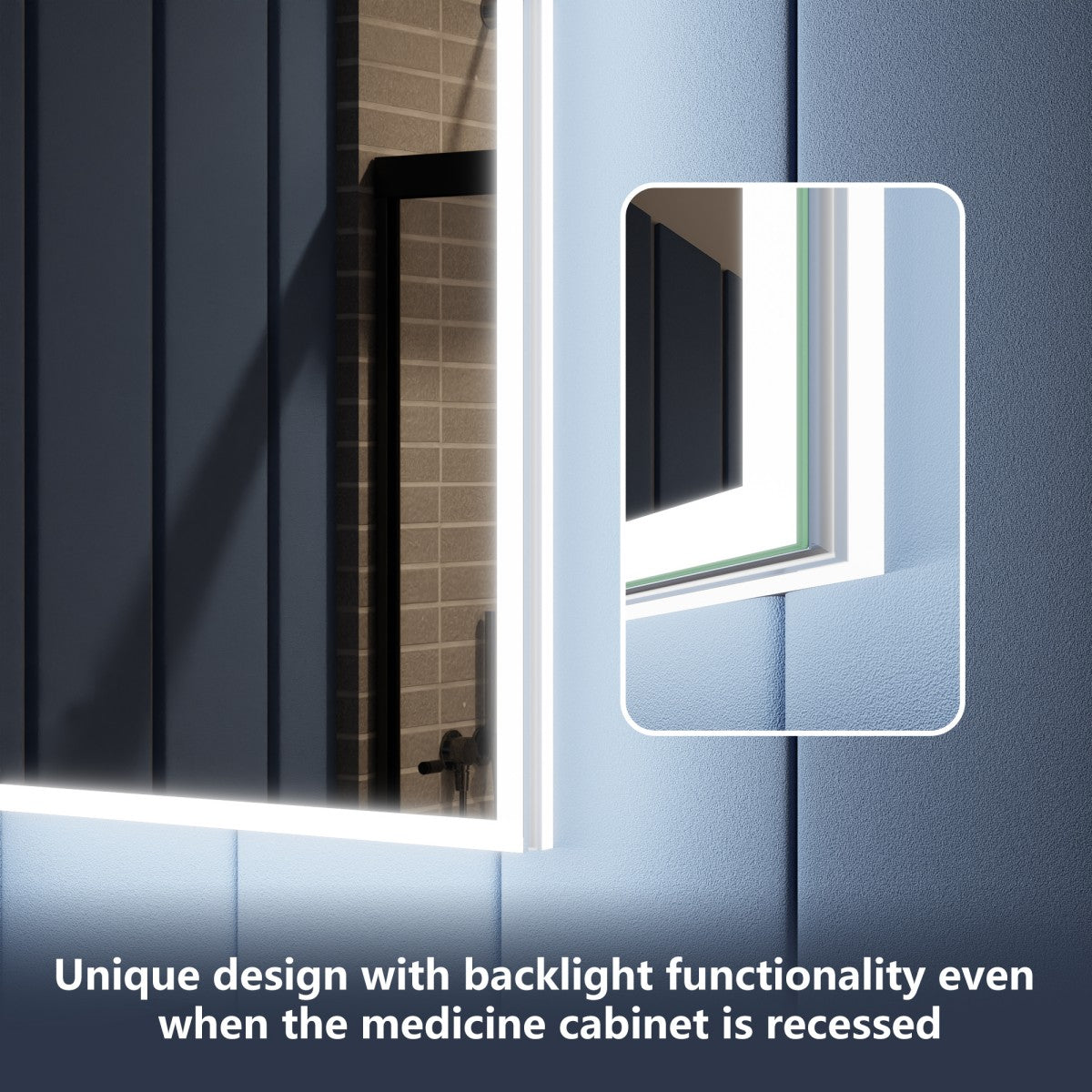

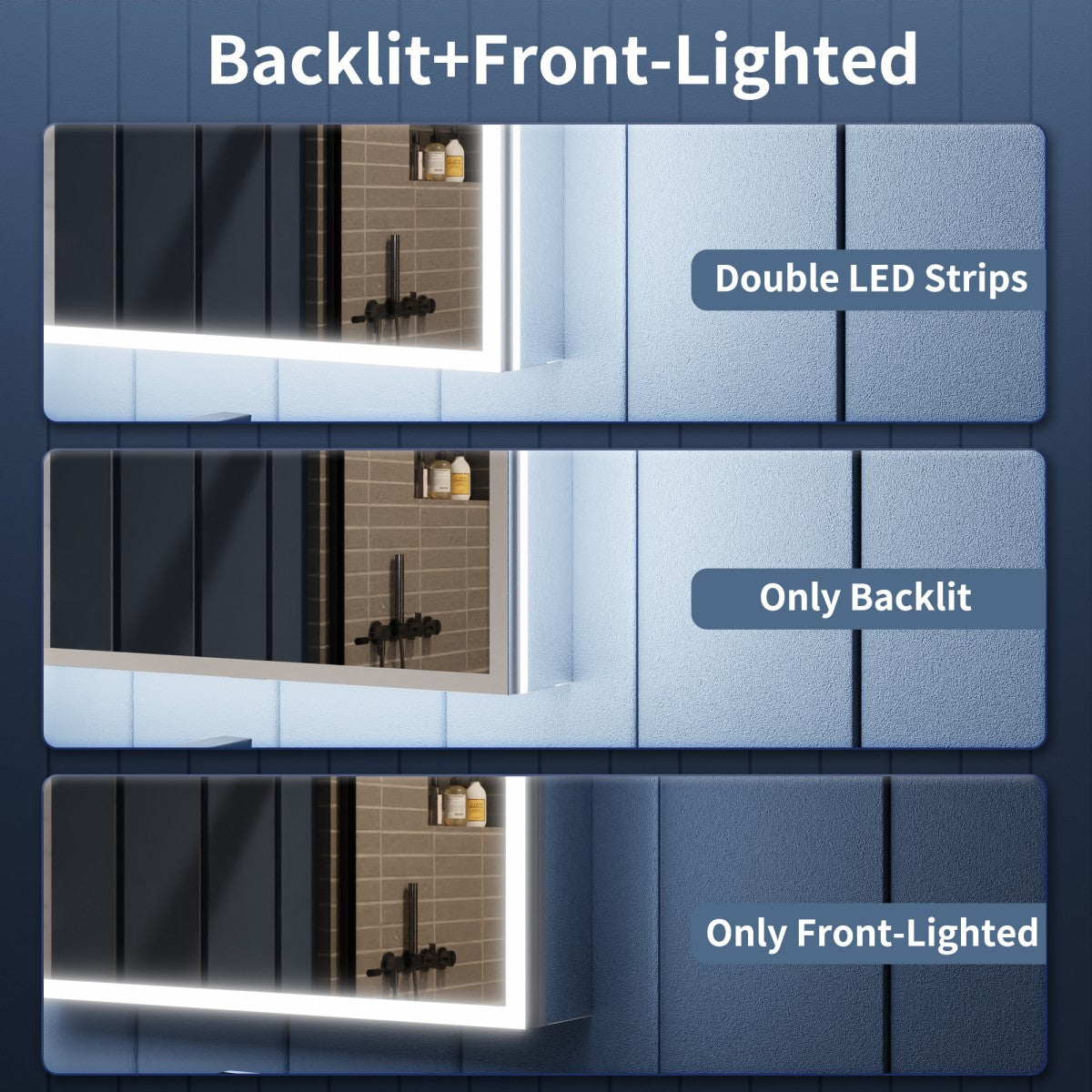

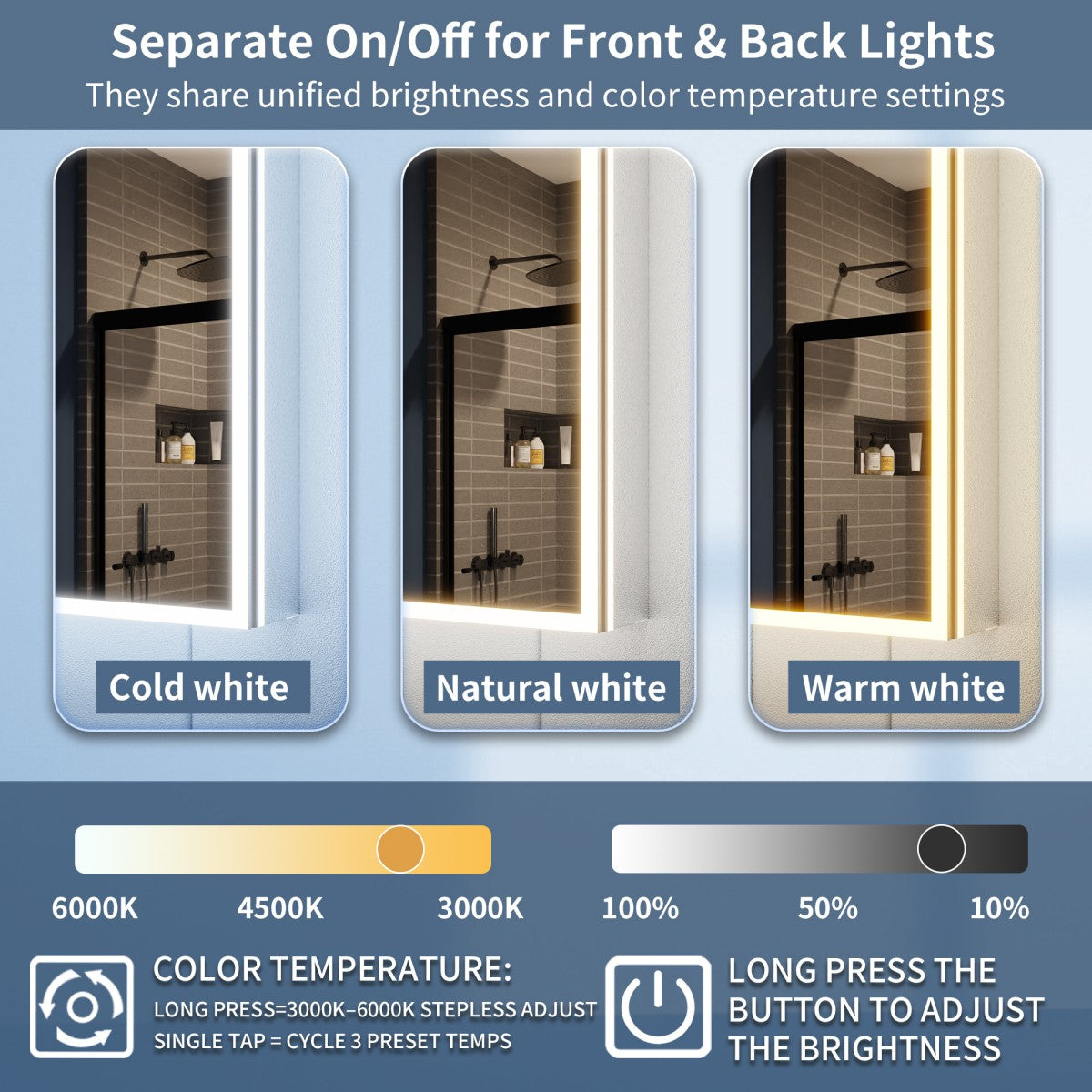

- Versatile Illumination Options: Our innovative dual-lighting system provides both front and back lighting, allowing you to choose from three distinct modes: simultaneous front and back illumination, front-only, or back-only lighting. This flexibility ensures optimal lighting for any scenario.
- Flexible Installation and Storage: The one-piece mounting rail supports both surface and recessed installation. Adjustable tempered-glass shelves provide flexible storage for toiletries and everyday essentials.

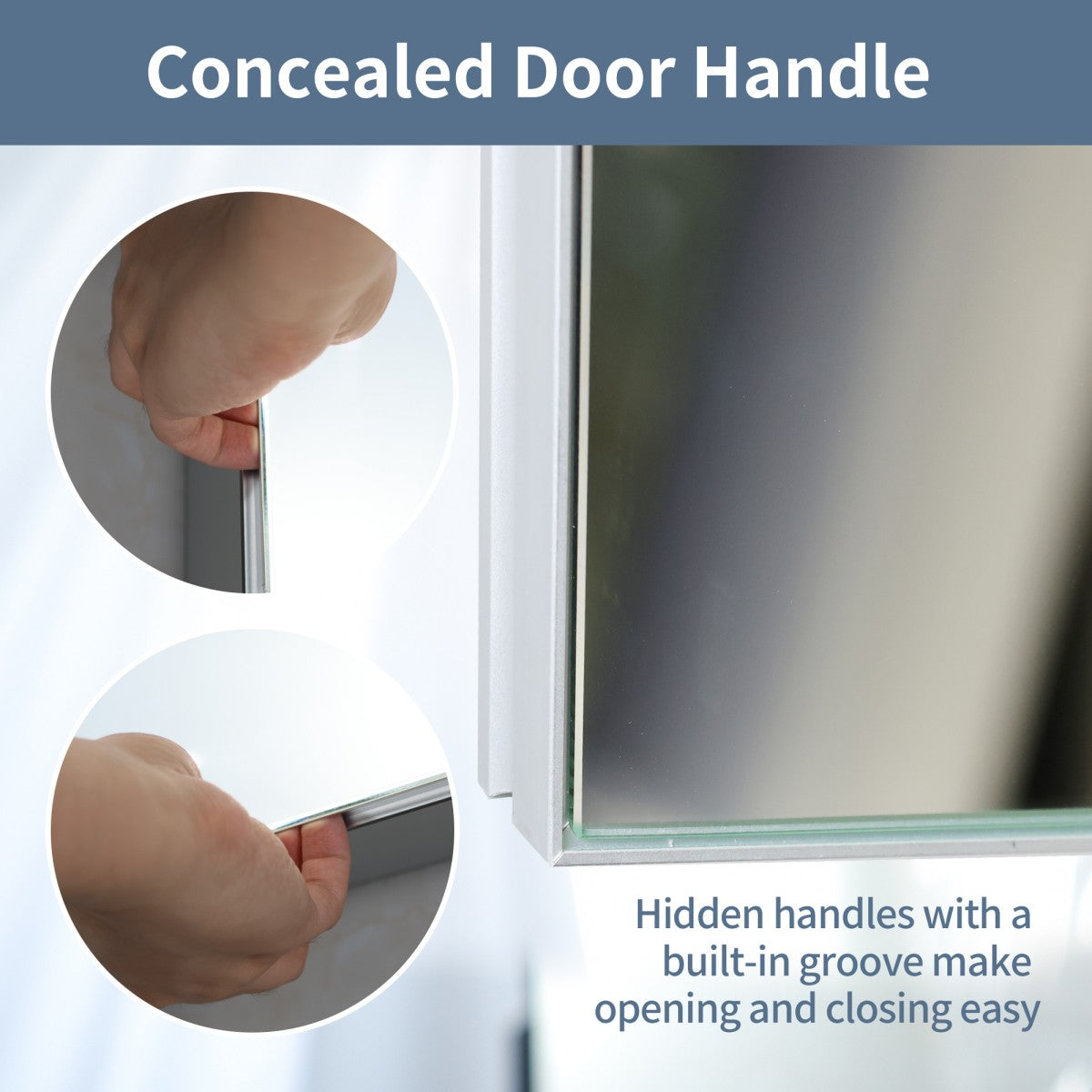

- Premium Reinforced Aluminum Construction: Built with a reinforced double-layer aluminum frame for superior stability, paired with a premium anodized finish that resists scratches and rust far better than spray-painted surfaces. A concealed handle keeps the mirror clean and fingerprint-free, while a hidden anti-pull safety latch ensures secure wall mounting—structural upgrades rarely found in standard single-layer medicine cabinets.
- Advanced Uniform Lighting System: Engineered for professional-grade illumination, our dual-end powered LED strips maintain consistent brightness across large mirrors, while the front-lit design delivers true corner-to-corner lighting. The dual-layer high-density LED configuration (192 LEDs per meter) offers a brighter, smoother glow with a service life over 50,000 hours—far outperforming low-density, short-lifespan alternatives. High CRI 90+ accuracy ensures natural, true-to-life skin tones for a premium lighting experience.

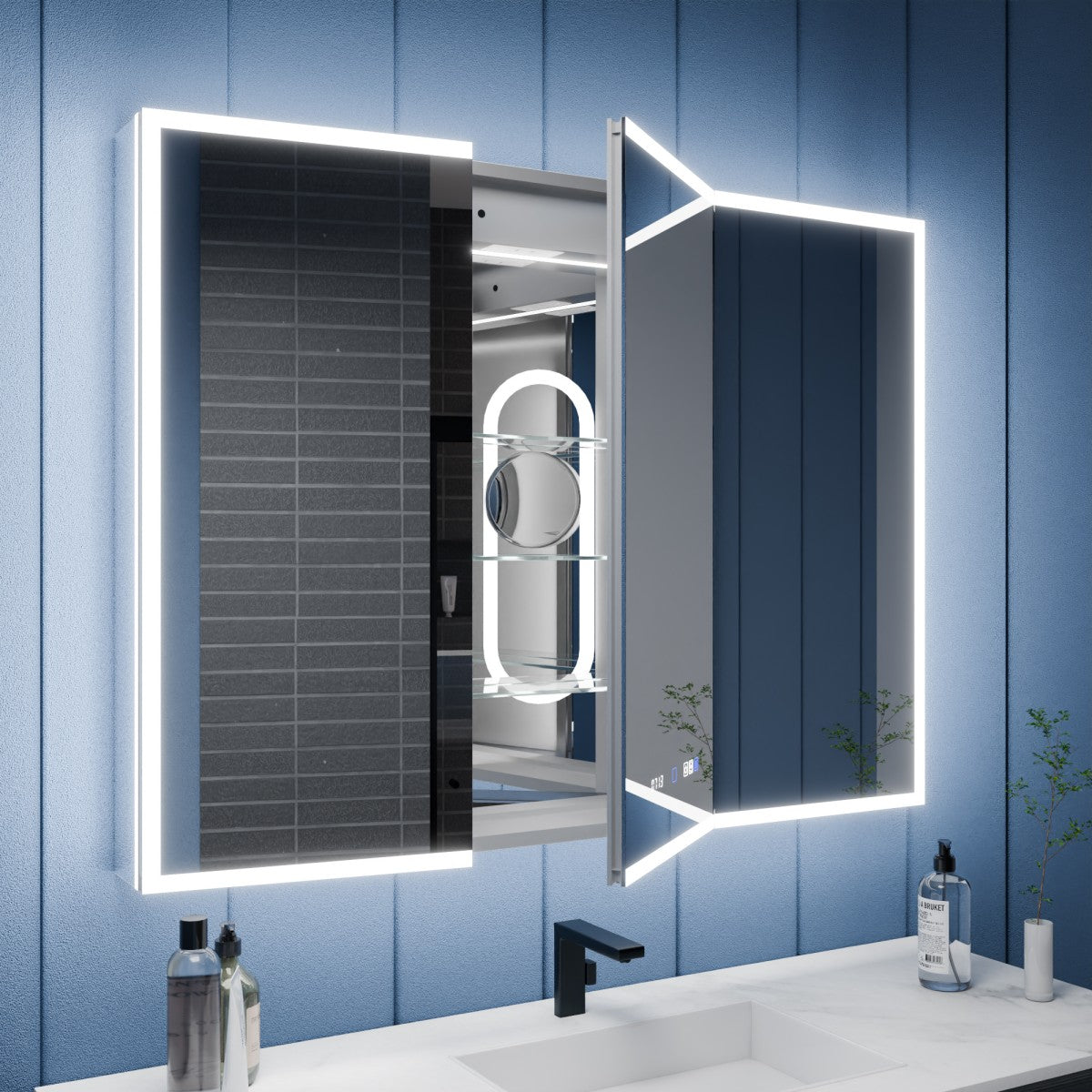

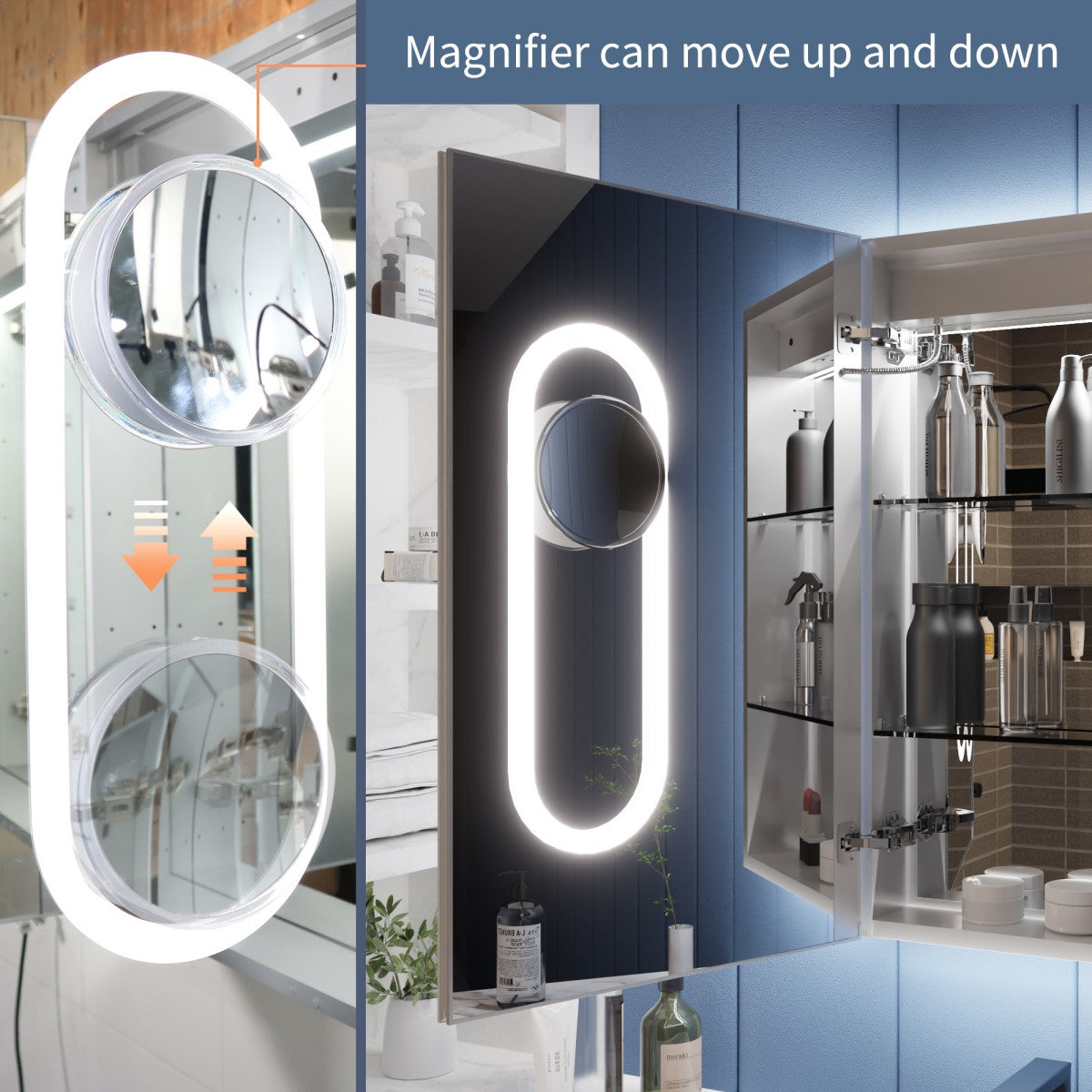

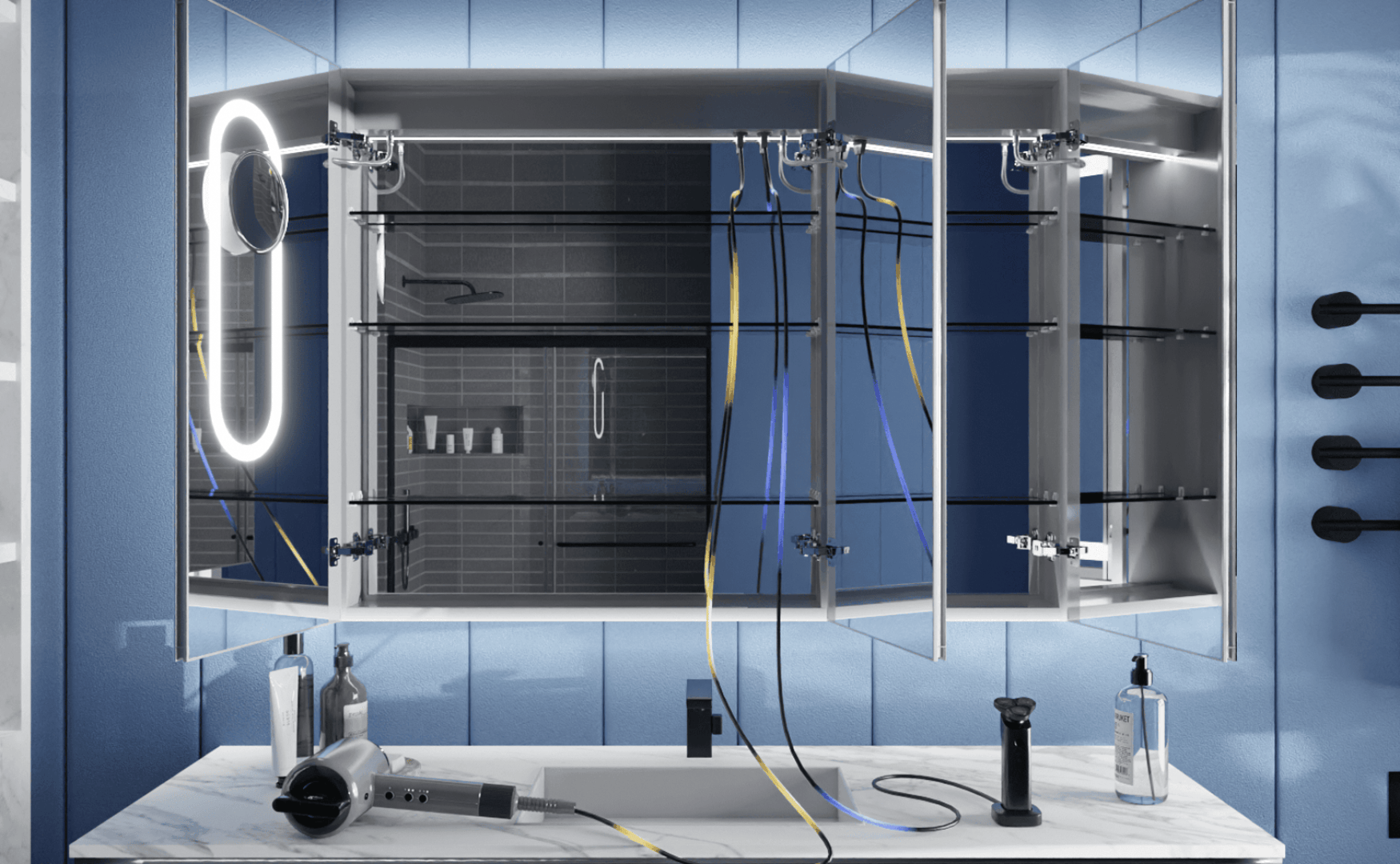

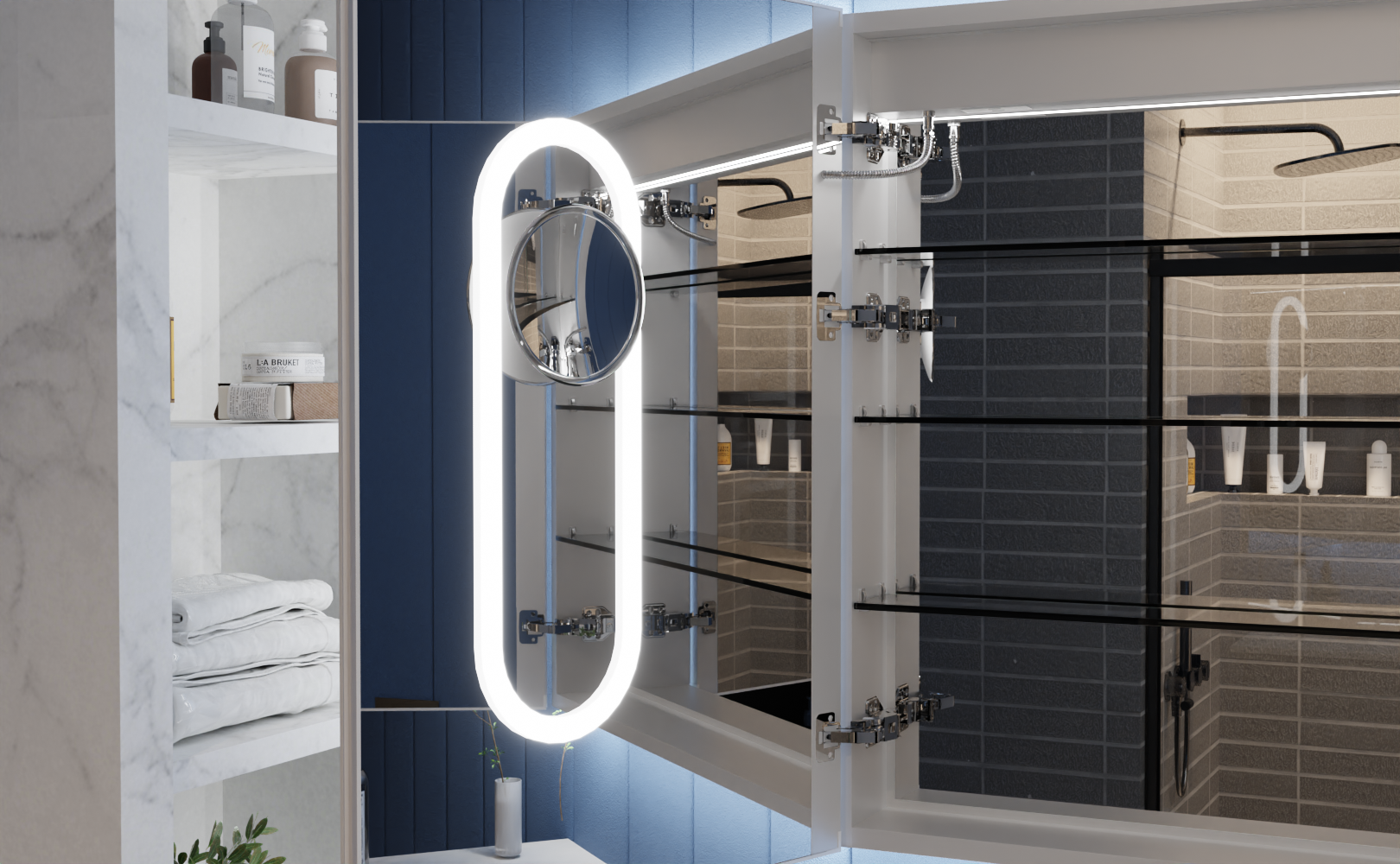

- Enhanced Viewing with Magnifying Mirror: A versatile magnifying mirror is securely attached through a magnetic mechanism within the internal ring light area, providing exceptional precision and clarity. The illumination surrounding the magnifying mirror is consistent in both color temperature and brightness with the main light, ensuring a cohesive and functional lighting experience.Our third-generation sliding illuminated magnifier offers adjustable positioning and patented stability superior to fixed or suction models.

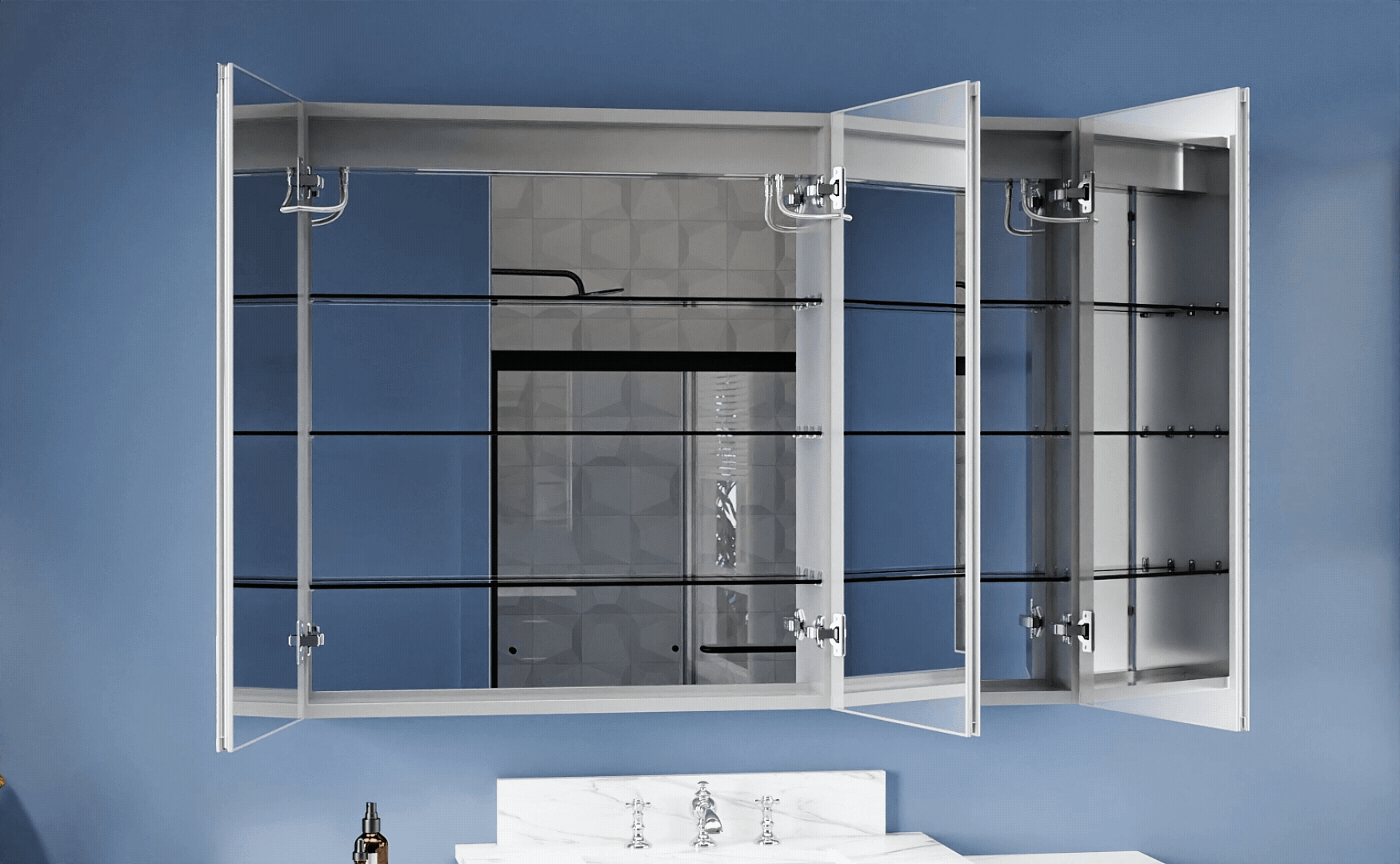

- 170° Wide-Angle Hinges: Our cabinet doors feature 170° hinges that allow for expansive access and visibility, thereby improving the usability and comfort of your cabinet.

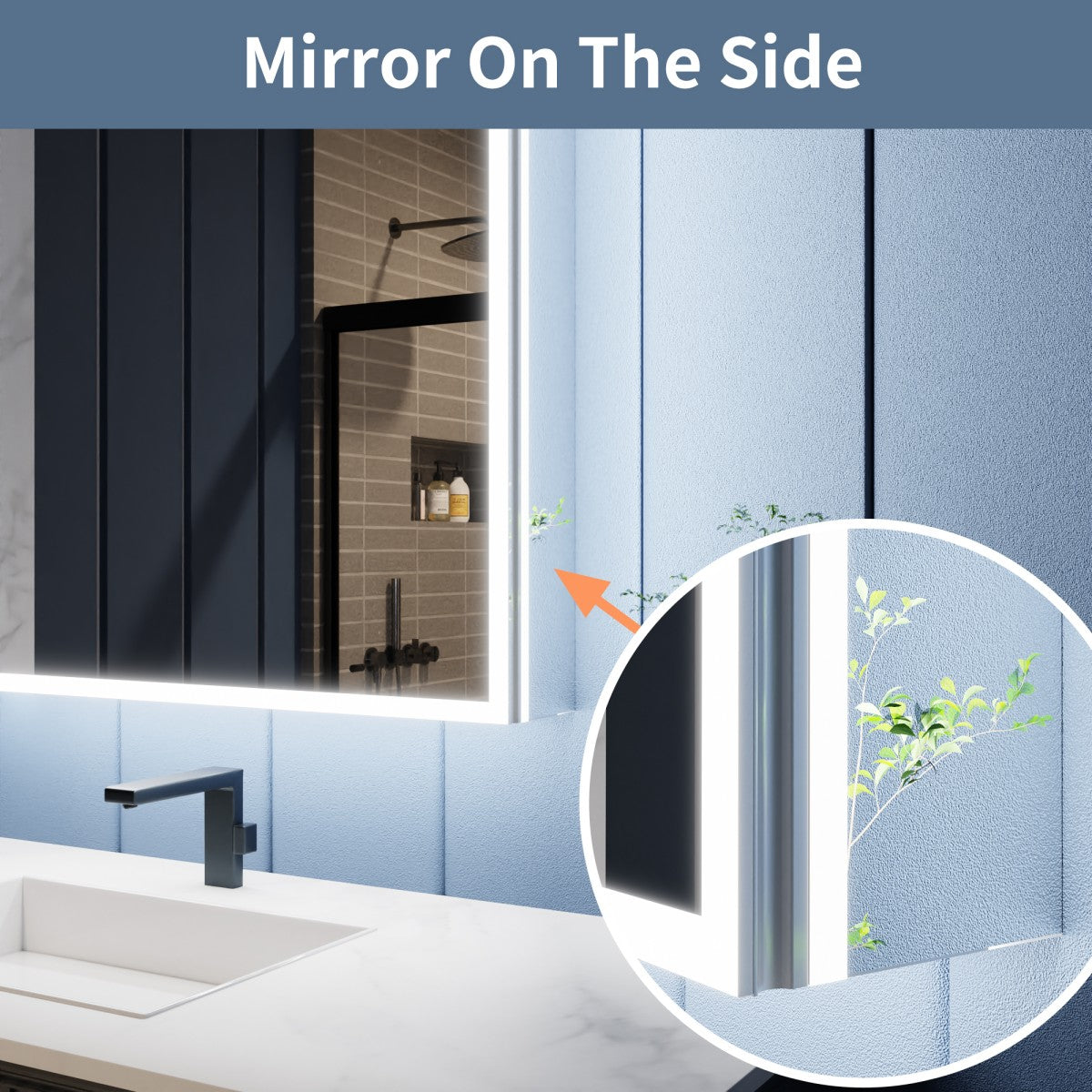

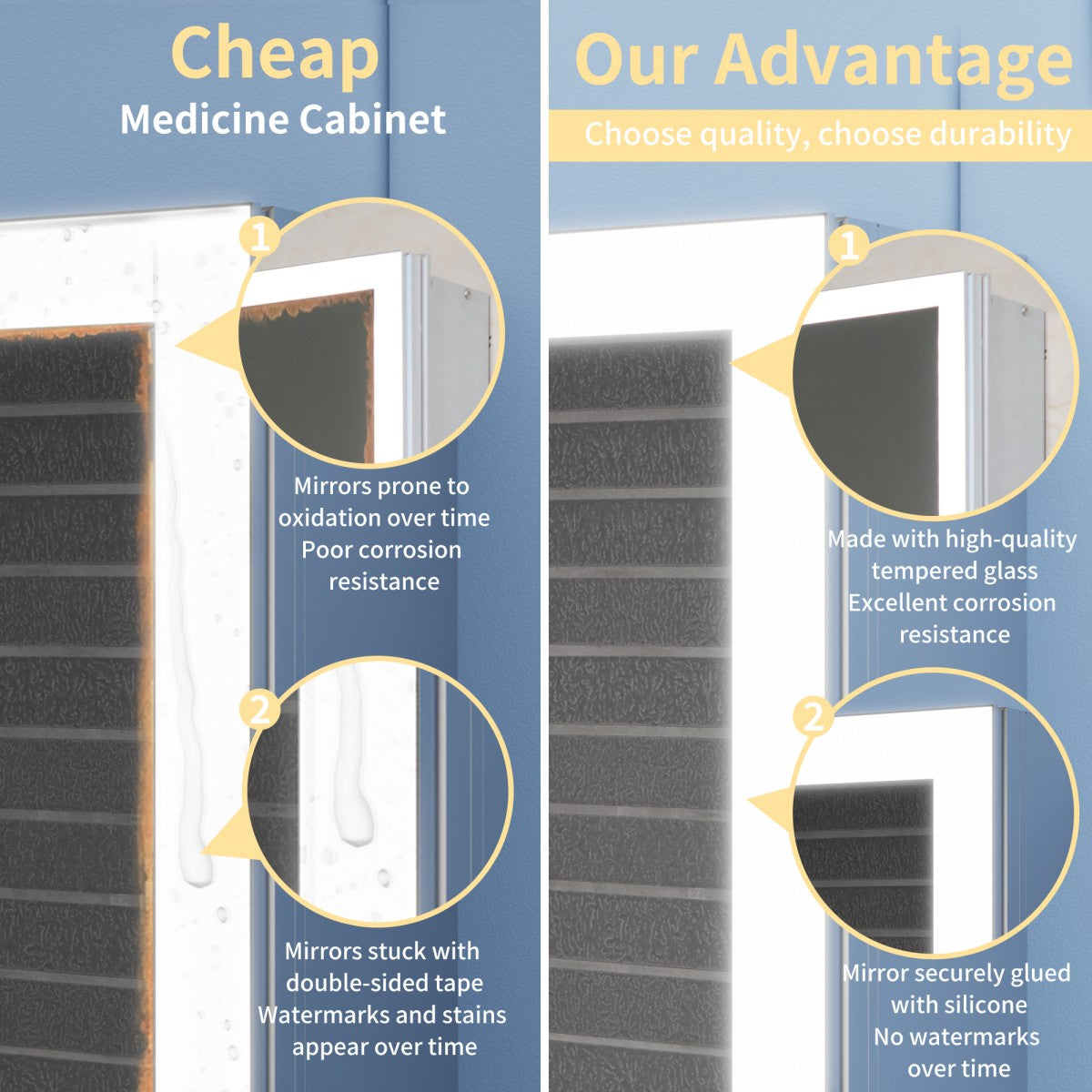

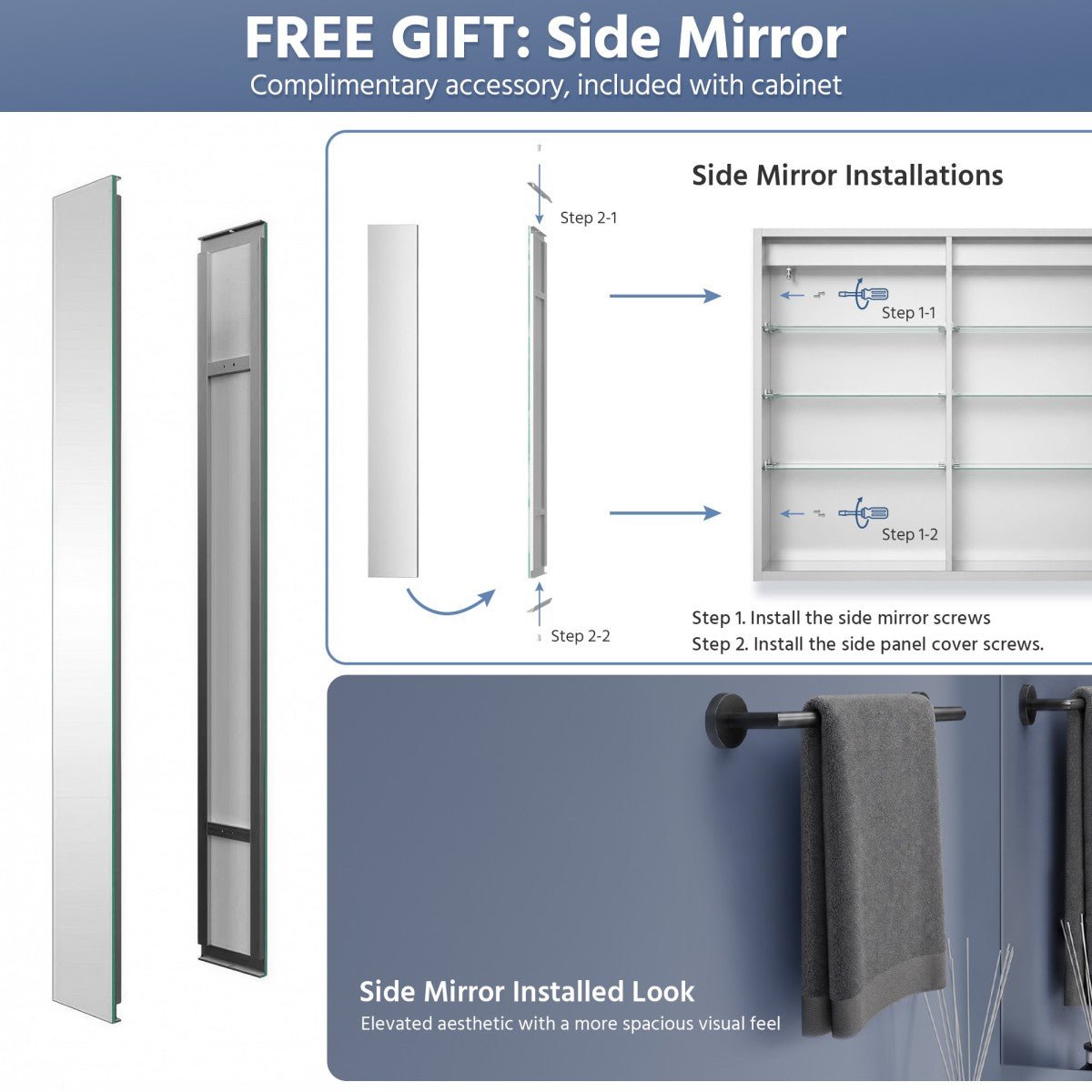

- Five-Sided Mirror Design: Designed for both durability and safety, the cabinet includes a tempered glass exterior mirror, eco-friendly interior and back mirrors, as well as side mirrors. This five-sided configuration delivers a comprehensive and distortion-free reflection from all angles.
- Cabinet-Width Sensor Light: Adding an elegant yet practical touch, the internal sensor light spans the entire width of the cabinet, providing uniform and aesthetically pleasing illumination that enhances both functionality and the overall ambiance of your space.

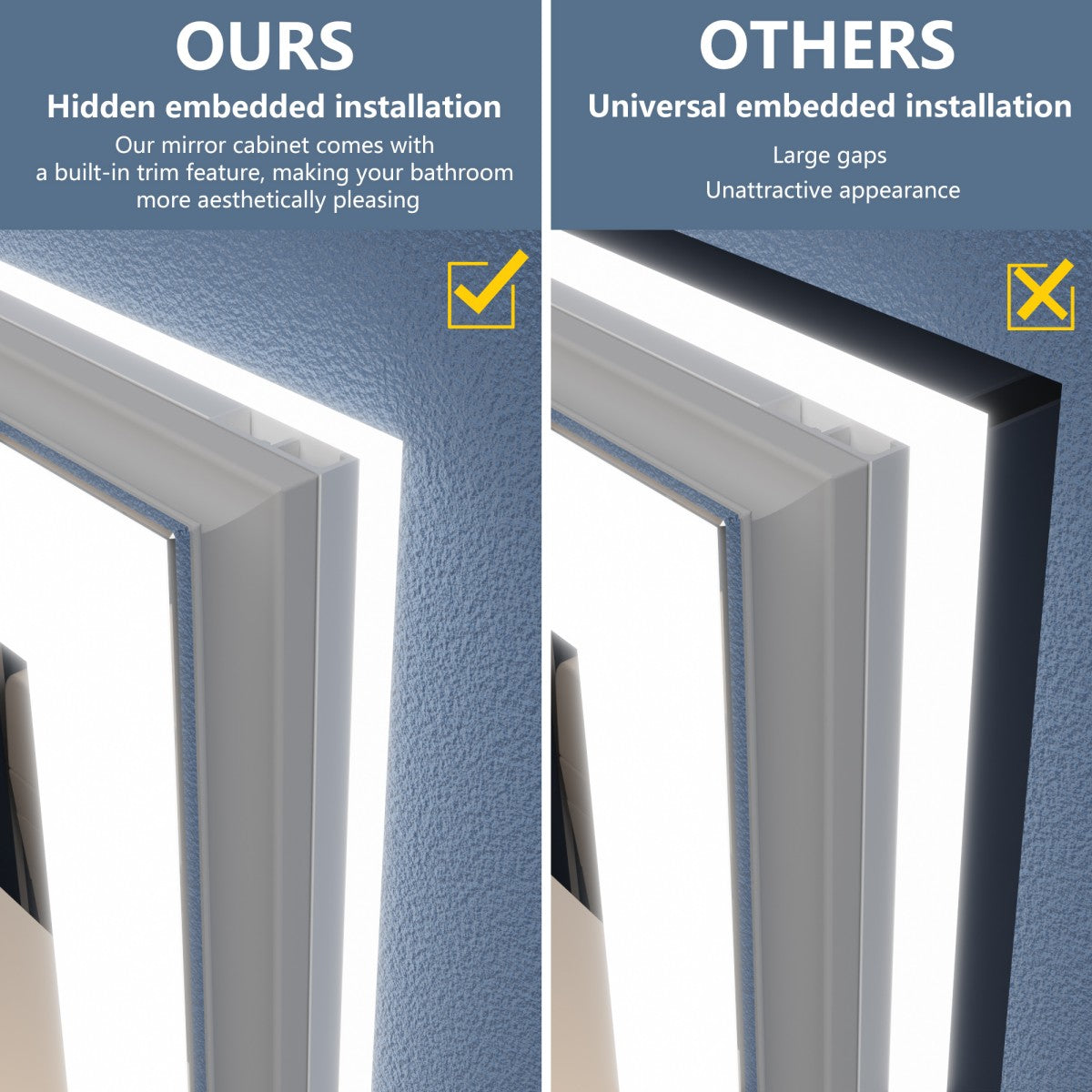

- Elegant Refined Medicine Cabinet: The exquisite edge trim of this cabinet introduces a touch of sophistication to your bathroom. Its meticulously crafted trim not only enhances its sleek appearance but also prioritizes safety, making it perfect for those who value meticulous attention to detail.

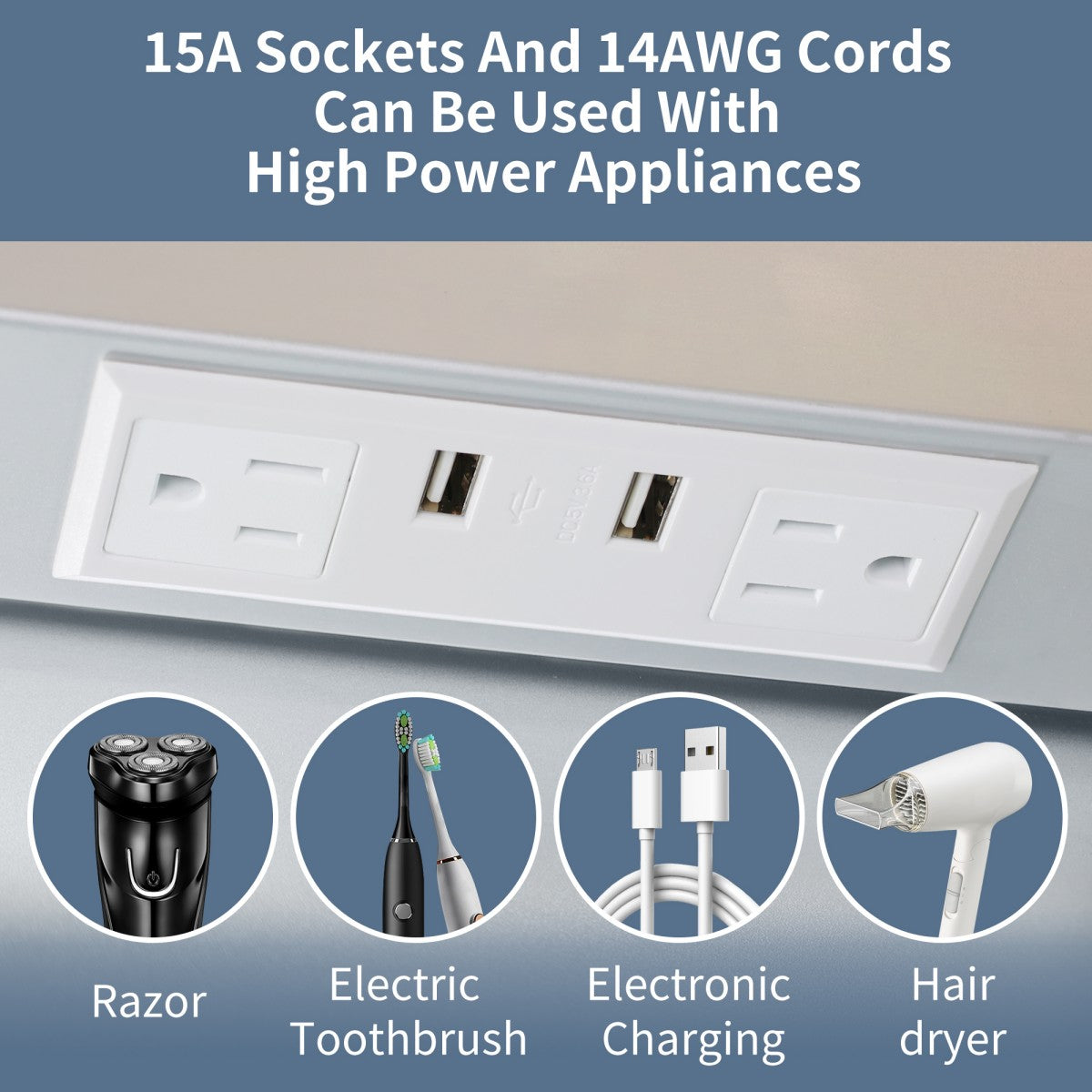

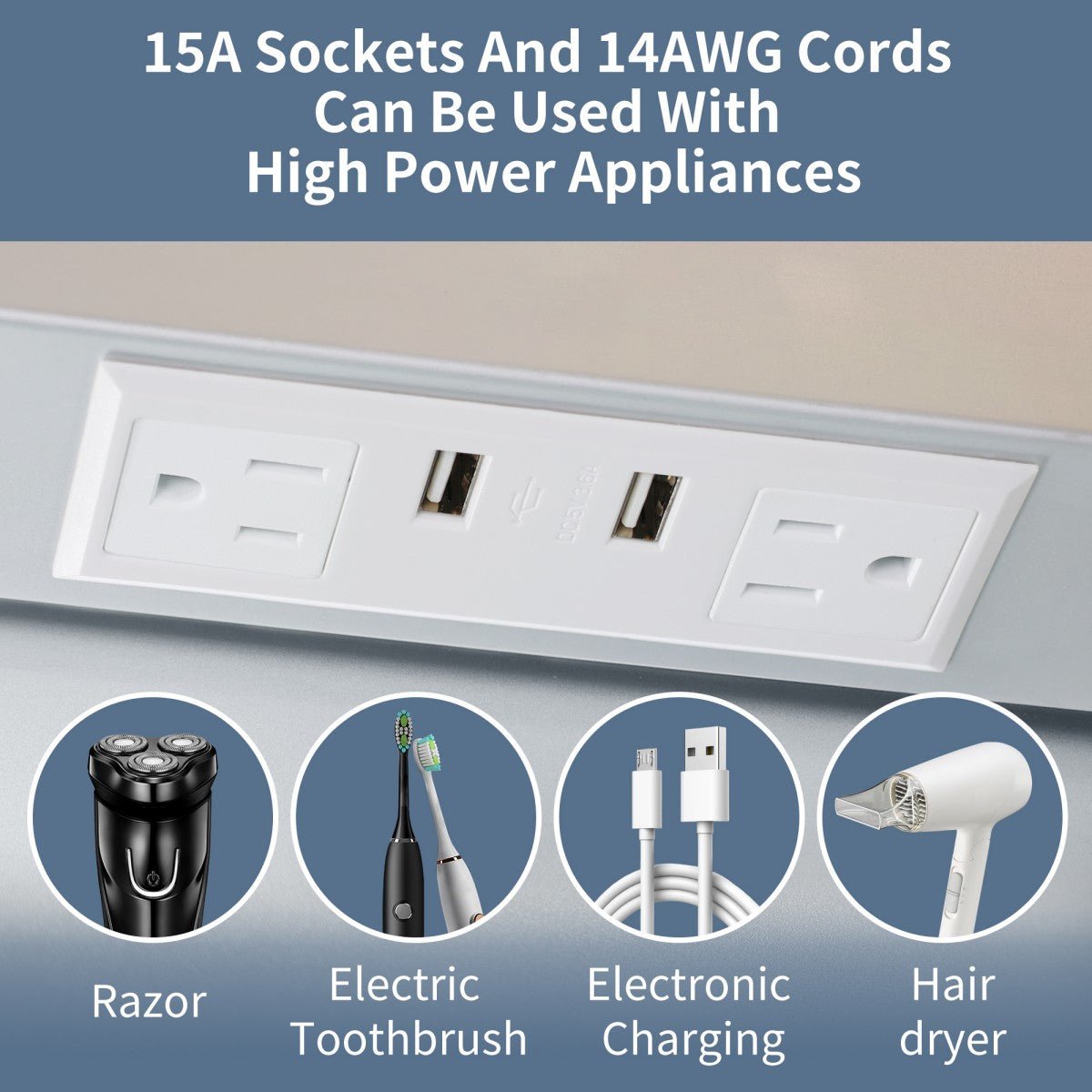

- High-Power Built-In Outlets: Two three-prong outlets support a combined maximum load of 1800W (15A at 120V), suitable for hair dryers and other high-wattage grooming appliances. Two USB ports provide a combined output of 5V/3.6A. Heavy-duty 14 AWG wiring supports reliable power delivery for everyday bathroom use.
Transform your bathroom with our versatile lighting mirror cabinet, where elegance seamlessly combines with practicality!!!
Frequently Asked Questions
1. Does the Illusion 48x36” medicine cabinet include a magnifying mirror?
Yes. This is the version of the Illusion 48x36” that pairs the magnifying mirror with front and back lighting for improved grooming routines.
2. How long does the anti-fog function stay on?
The anti-fog system automatically shuts off after 60 minutes for safety. It resets every use and does not remember a previous setting.
3. How does the magnifying mirror attach to the Illusion 48x36”?
The magnifying mirror attaches magnetically within the internal ring light area, and the third-generation sliding illuminated magnifier can be repositioned rather than fixed in place.
4. How bright is the Illusion 48x36” and what color temperatures does it offer?
It produces 5985 lumens at CRI ≥90 from 168 W, with stepless 3000K-6000K adjustment and click-to-switch presets at 3000K, 4200K, and 6000K.
5. How far do the Illusion 48x36” cabinet doors open?
The doors use 170° soft-closing hinges, which open wider than the 110° hinges used on the Boost-M1 and Ample series.
6. Can I put the Illusion 48x36” on a dimmer switch?
No. It is hardwired only, with no plug included. While it works with regular wall switches to cut power, dimmer switches are incompatible. Brightness is adjusted on the cabinet's own touch controls.
